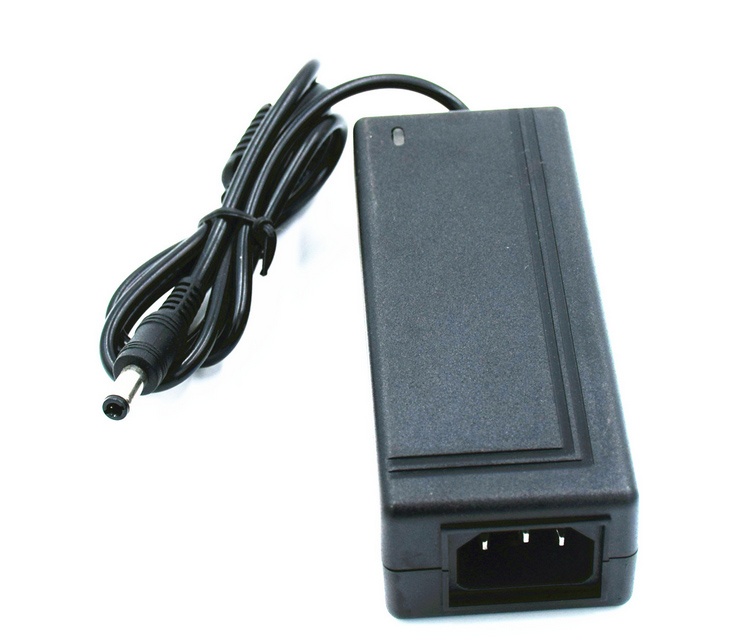

Product name : 12V3A desktop
Product No. : HL-SW03
Input : AC 100-240V
Output : DC 12V 3A
Power : 36W
DC Pin : 5.5*2.5mm/5.5*2.1mm/others
product name : switching power adapter 12V 3A
Model : HL-SW03
compatible for : CCTV,LED,Moul,Camera,etc.
warranty : 2years
package : brown box/customized
ac cable : AU,EU,US,UK,etc.for choice
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 100-240v switching ac charger 12v3a ac dc adapters power adapter

Specification

1 Input voltage: AC 100-240V

2 Output voltage: DC 12V

3 Output current: 3A



Protection

1 Over voltage protection

2 Over current protection

3 Over load protection

4 Short circuit protection



Environment requirements

1 Operating temperature: -10-35  C Celcius

2 Storage temperature: -20--70  C Celcius

3 Storage humidity: 5%-90%



Advantage

1 Soft-start can reduce the AC input impact efficiency

2 Wiht short ciucuit and over load protection

3 Compact size, light weight

4 100% full-load burning test



AC Input

AC Input Voltage.............96~264V AC 47~63 Hz

Inrush Current..............<50A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%



DC Output

DC Voltage Regulation

Parameter

Line Regulation

load Regulation

Cross Regulation

V1:12V

 ±5.0%

 ±5.0%

 N/A



DC Output Current

Parameter

Min Current

Rate Current

unit

V1:12V

 0.1

 3

A



Output Ripple & Noise............120mVp-p@25 °C



Output Dynamic Load Response

Dynamic Load

 DC Voltage Regulation

50%~100%~50%

 ±10%



Overshoot at turn-on/ turn-off.............<10%



Protection Function

SCP...........<0.1 ohms

OCPlimits..........10A



Timing

Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)



Environment Requirement

Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)
