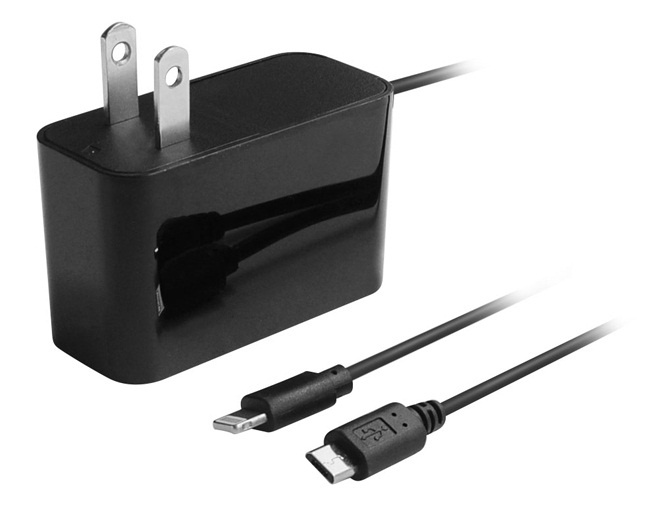

Product name : Wall Mount Adapters micro usb charger
Product No. : HL-USB05
Input : AC 100-240V
Output : 5v 2.5a
Power : 12.5W
DC Pin :
product name : Wall Mount Adapters micro usb charger
Model : HL-25
compatible for : phone,tablet,iphone...
warranty : 13months
package : color box
ac cable :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
 DC 5v 2.5a micro usb charger, AC/DC Wall Mount Adapters micro usb charger
DC Output Voltage5.2V± 5%
DC Output Current2.5ADC Output Power 13W
Working Efficency 83%
Warranty 2 years
Certificates approvedTUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick
Input Rated Voltage 86Vac~264Vac
Input Frequency Range47Hz~63Hz
Safety protection output voltage protection (120%-150% rated output current)output current protection (150%-180% rated output current)short current protection Ripple and Noiseless than 60Mv at full road with 20MHz bandwidth
DC connectormicro USB
DC cable1.2m  cable (optional)
Operating Temperature 0°C - +55°C
Storage Temperature  -20°C - +85°C
Turn On Delay Time less than 3S  (AC:110V and full load)
Dielectric Voltage A IEC320 three pin input---output(FG)3000V ac one minute
Input Current less than 0.5A
Input Inrush Current less than 50A
Leakage Current less than 5mA
Standby power  less than 0.3w
